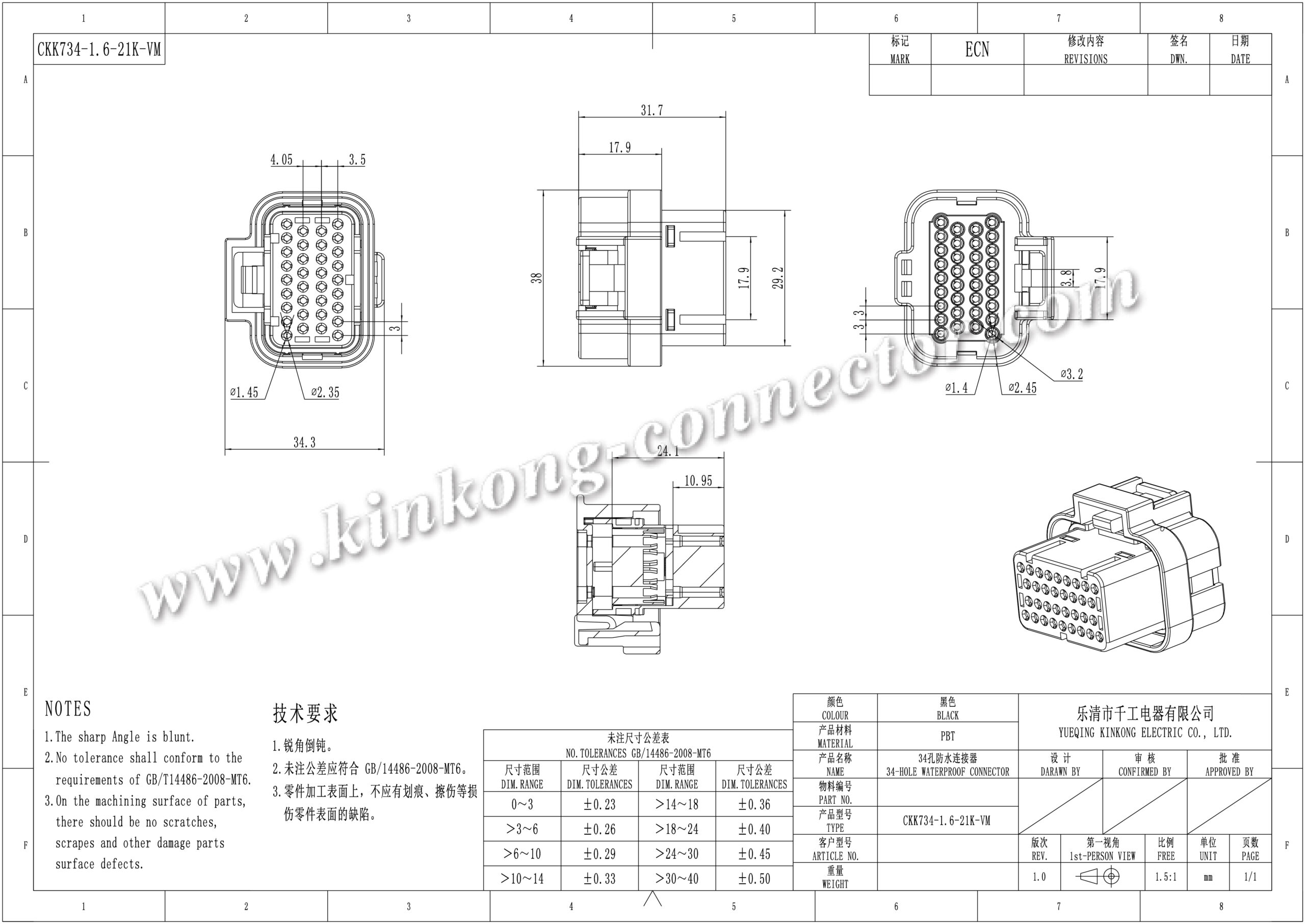

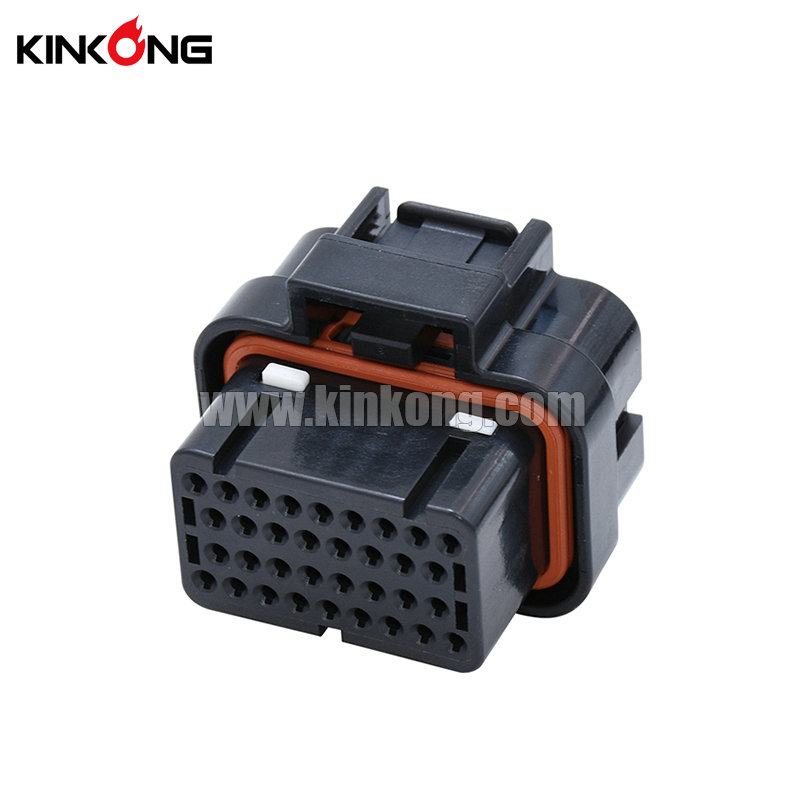

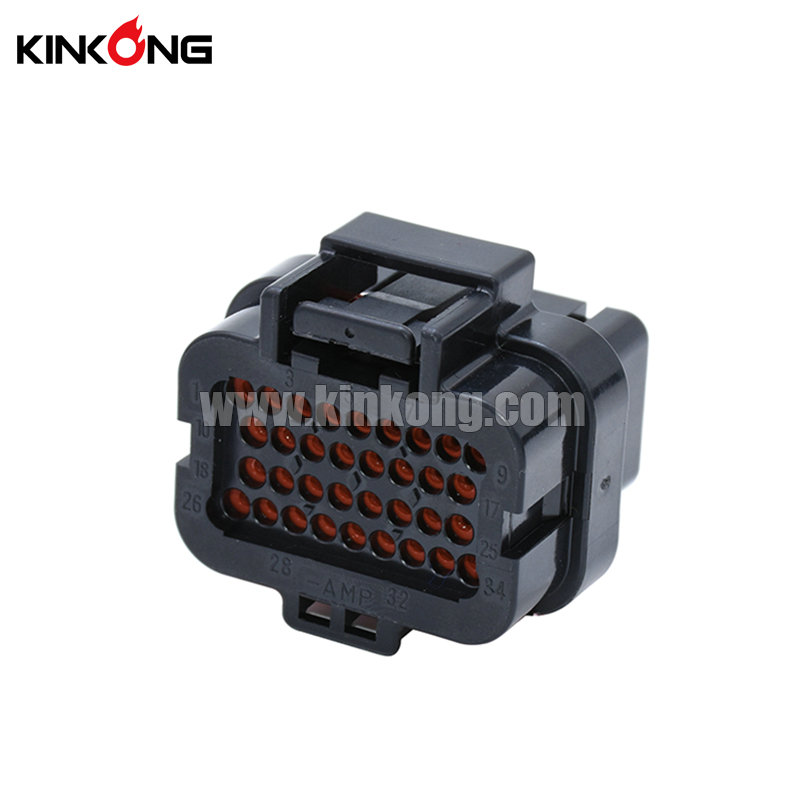

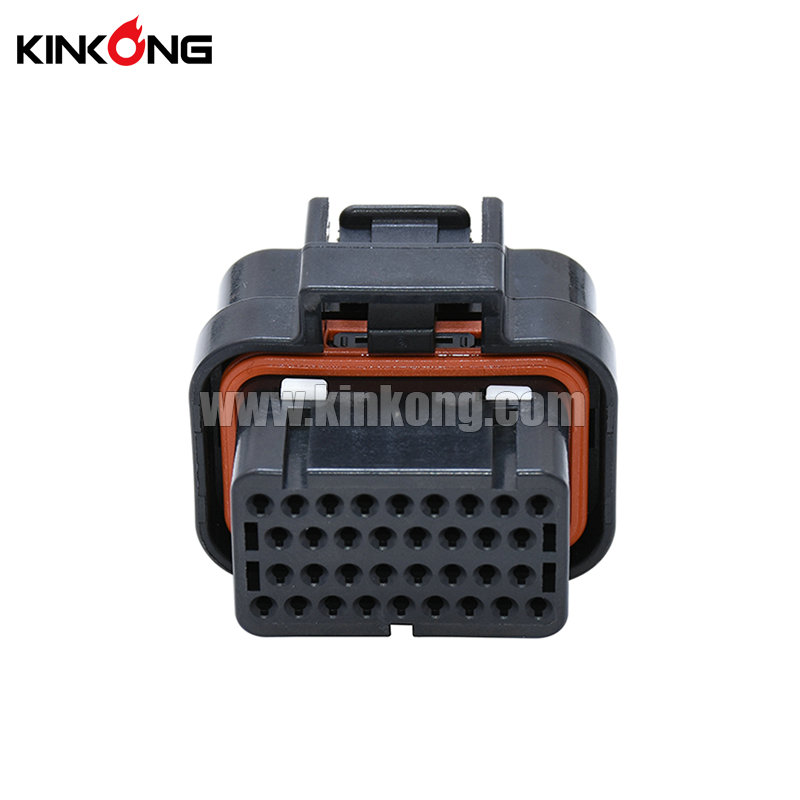

Housing for Female Terminals, Wire-to-Device / Wire-to-Board, 34 Position, .118 in [3 mm] Centerline, Sealable, Black, SUPERSEAL 1.0mm
| Kinkong Part Number | CKK734-1.6-21 | Material | Housing:PBT+G,PA66+GF |
| OEM Part Number | 4-1437290-0 | Operating Temperature range | -40℃~120℃ |
| Product Series | AMP Superseal 1.0 Series | Certification | TS16949, ISO14001 system and RoHS. |
| Cavities | 34 | MOQ | For product in stock, small order can be accepted. For product run out of stock, depends on different situation, please send enquiry. |
| Male/Female | Female | Delivery Time | Enough stock and strong production capacity ensure timely delivery. |
| Sealed or Unsealed | Sealed | Packaging | 100,200,300,500,1000PCS per bag with label,export standard carton. |
| Color | Black | Design Ability | We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request |
| Typical Application | – GSXR1300 Hayabusa ECU (99′-07′)
– YZF-R1 ECU (07′-11′) – YZF-R6 ECU (06′-14′) – ZX-10R ECU (04′-05′) – Motec ECU’s: M84, M400, M600, M800, and M1 series M130, M142, M150 – Motec Power Distribution Module’s: PDM15, PDM30 – Motec Expansion box E888 – Motec Dash Logger’s: CDL3, C125 – DTAfast ECU’s: S40, S60, S80, S100 – Haltech ECU’s – Link and Vi-PEC ECU’s |
||
Our engineers will carefully assess the applicability of your customization needs and work with designers to generate practical customization solutions that will bring your brand superb product quality and make your promotion simple and advanced.
