DEUTSCH DTM connector will stand up to the harsh environment challenges that are common to industrial markets that require advanced performance.Proper parts,procedures,and tooling must be used.

Temperature: Operating at temperatures from -55° C to +125° C continuous at rated current.

Durability: No electrical or mechanical defects after 100 cycles of engagement and disengagement.

Vibration: No unlocking or unmating and exhibits no mechanical or physical damage after sinusoidal vibration levels of 20 G’s at 10 to 2000 Hz in each of the three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond.

Physical Shock: No unlocking, unmating, or other unsatisfactory result during or after 50 G’s in each of three mutually perpendicular planes. No electrical discontinuities longer than 1 microsecond. MIL-STD 202, Method 213, Condition “C”.

Fluid Resistance: Connectors show no damage when exposed to most fluids used in industrial applications.

Insulation Resistance: 1000 megohms minimum at 25° C.

Moisture Resistance: Properly wired and mated connections will withstand immersion under three feet of water without loss of electronic qualities or leakage.

Dielectric Withstanding Voltage: Current leakage less than 2 milliamps at 1500 VAC.

Thermal Cycle: No cracking, chipping or leaking after 20 test cycles from -55° C to +125° C.

DEUTSCH DTM connector fill the need for lower amperage,multi-pin connectors.These connectors are environmentally sealed and stand up to harsh environments.DEUTSCH DTM connector can be mounted in-line,flanged,and used for PCB mount applications.The connectors are made of rugged thermoplastic and feature silicone rear wire and interfacial seals that allow the connector to withstand conditions of extreme temperature and moisture.

DEUTSCH DTM housing are available in 2,3,4.6,8 and 12pins counts and use size 20

DEUTSCH contacts,each with 7.5-amp continuous capacity.DTM housing feature an integrated latch for mating.

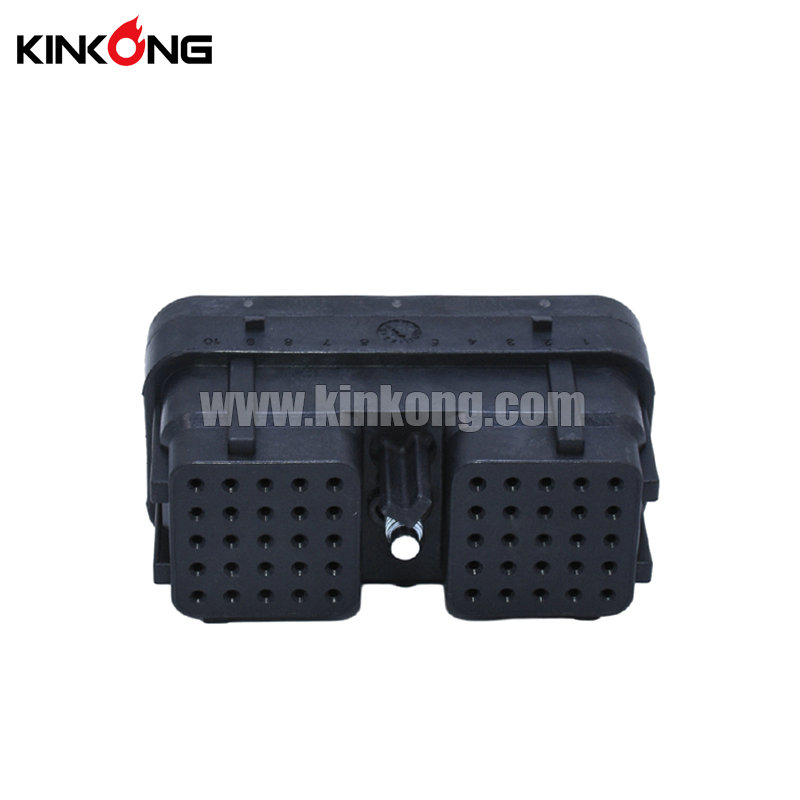

DEUTSCH DTM headers print angle printed circuit board connector available with straight or right angle pins.DTM header are available with 12 or 48 cavities and accommodate size 20 contacts ,rated for 7.5 amps.

DEUTSCH DTM wedge locks help confirm proper contact alignment with each connector.They are assembled at the mating interface and press into place.wedge locks are required components for all DEUTSCH DTM connector.

DEUTSCH DTM back shell offer a high level of protection and allow convoluted tubing to nest within the rear of the back shell.Straight and 90 version are available.
